Plastic Hand Cream 0.6MPa Tube Filling Sealing Machine

  • 1
  • 2

Brand Name : LTPM CHINA

Model Number : LTRG-100A

Certification : CE/ISO/GMP

Place of Origin : China

MOQ : 1 Set

Price : USD42,000.00/Set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Packaging Details : Wooden case with strong seaworthy packing suitable for exporting

Main Machine Landing Area : 3m2

Working Area : 2.5㎡

Whole Machine : 2.5*1.2*2.4M(L×W×H)

Case Body Material : 304

Main Motor : Main Motor

Operation Speed : 60-75

Filling Range : Plastic tube 3-240ml

Suitable Tube Length : 210mm

Suitable Tube Diameter : 12.5-50mm

Working Pressure : 0.5-0.6MPa

Filling Material : Ointment,Cream,Glue,Oil,etc.

Contact Now



Product Specify



This machine is a high-tech product which successfully developed and designed by adopting advanced technology from abroad and strictly meet GMP requirement. PLC controller and color touch screen are applied and made it possible for programmable control of the machine. It can perform the filling for ointment, cream jellies or viscosity material, sealing or tail folding, batch number embossing (include manufacture date) automatically. It’s ideal equipment for aluminum tube filling and sealing for cosmetic, pharmacy, foodstuff and bond industries.



Main technical parameters



  • Machine case body

  Case Body Material 304
  Opening Mode of Safety Guard Handle Door
  Safety Guard Material Organic Glass
  Frame Below Platform Stainless Steel
  Case Body Shape Square-shape
  • Power, Main Motor etc.

  Power Supply 50Hz/380V 3P
  Main Motor 1.5KW
  Hot Air Generator 3KW
  Jacket barrel heating power 3 KW Optional,needs extra cost
  Jacket barrel blending power 0.18 KW Optional,needs extra cost
  • Production Capacity

  Operation Speed 60-75/min/max
  Filling Range Plastic tube 3-240ml
  Suitable Tube Length 210mm
  Suitable Tube Diameter 12.5-50mm





Plastic Hand Cream 0.6MPa Tube Filling Sealing Machine

Features:
1. Automatic filling of liquid or paste, sealing tubes, batch number printing, include manufacture date.

  • 2. Features of rationalstruction, complete function,easy operation, accurate filling, stable running, as well as low noise.
  • 3. The body is made of 304 stainless steel



Machine Specific Photo:

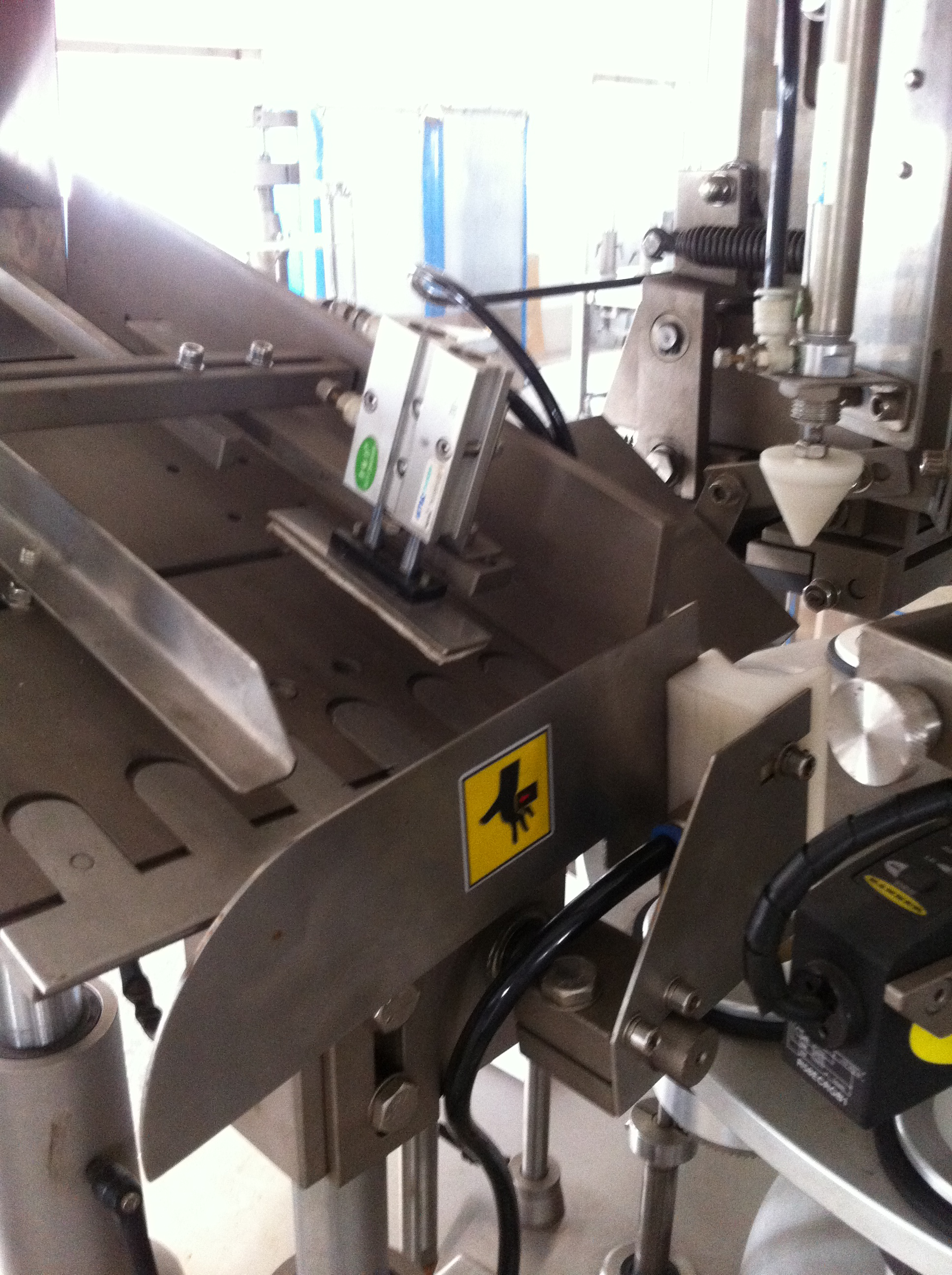

Tube feeding

Plastic Hand Cream 0.6MPa Tube Filling Sealing Machine


Print Registering and Filling(Plastic Tube):

Plastic Hand Cream 0.6MPa Tube Filling Sealing Machine



Aluminum Tube:Sealing

Plastic Hand Cream 0.6MPa Tube Filling Sealing Machine

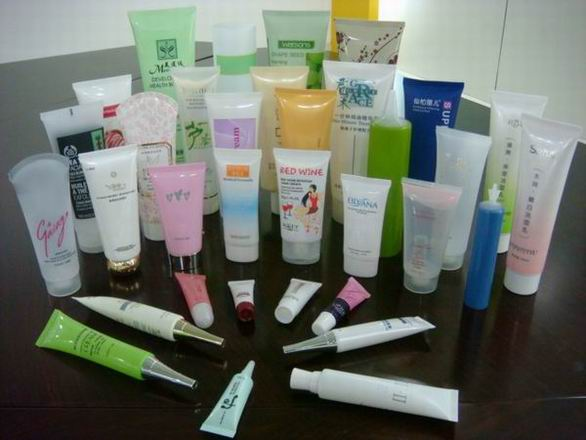

The product we packed:

Plastic Hand Cream 0.6MPa Tube Filling Sealing Machine

If you are interested in the above machines, click on the right and send us a message! I can recommend suitable products and production plans for you.
