Specification:
| | | Applicable syringe specifications | | | | | Number of injection needles | | | | | | | | | | | | | | | | | | | | |
Features
1.This product is widely used for filling and capping of various types of plastic syringes, and special types can be customized.
2.The surface is made of SUS 304 stainless steel, and the contact parts are made of SUS 316L stainless steel and medical silicon rubber, which fully meets the requirements of GMP specifications.
3.The ceramic plunger pump realizes quantitative filling, is resistant to acid and alkali corrosion, wear-resisting and high temperature, and has high filling accuracy.
4.The conveying and sorting of the cover is realized by the vibrating plate, which adopts the SUS 316L stainless steel clean plate, which has a bright surface treatment and no clean dead corners.
5.Adopting internationally well-known electrical components, implementing non-interference modular control, all synchronous actions are controlled by servo motors, which are accurate and reliable, and easy to operate.
6.The operation of the motor is controlled by the PLC programming controller, and the human-computer interaction interface monitors and displays the working status of each station in real time, and automatically alarms and displays the fault location in real time, and the fault prompts.
7.Fully automatic operation, automatic filling, automatic capping, and automatic capping.
8.The method of filling the syringe head can eliminate the air inside the syringe to the greatest extent and improve the qualification rate.
9.Modular design, easy to locate, easy to expand, can be used as a stand-alone machine or connected to hoist, assembly machine, rotary rod machine, labeling machine and other equipment to form a production line.
10.Optional 100-level laminar flow hood to achieve high-demand clean production.
Working Station
Included the syringe loading, filling, capping and Output finish product guider.

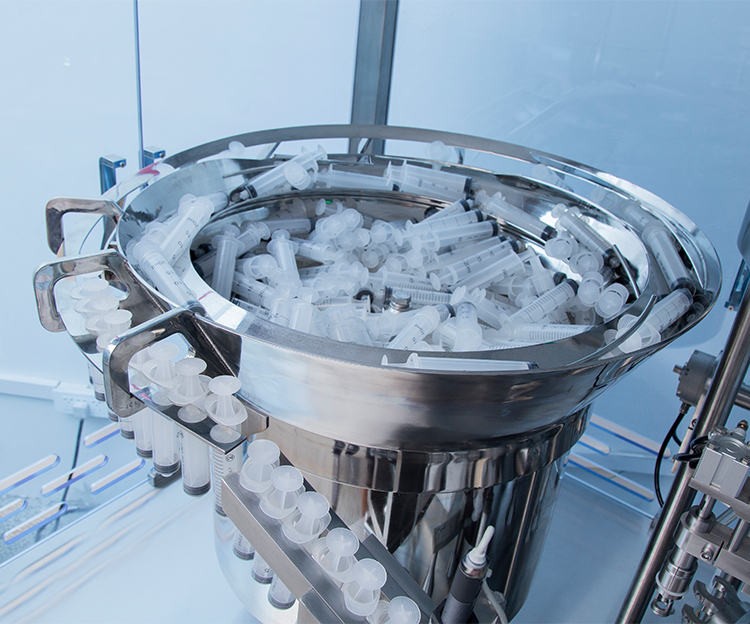

Syringe tube loading guider
Syringe sort of vibrating plate will sort of the syringe tubes and send to the loading guider one by one, loading guider will send syringe tub into turn table.

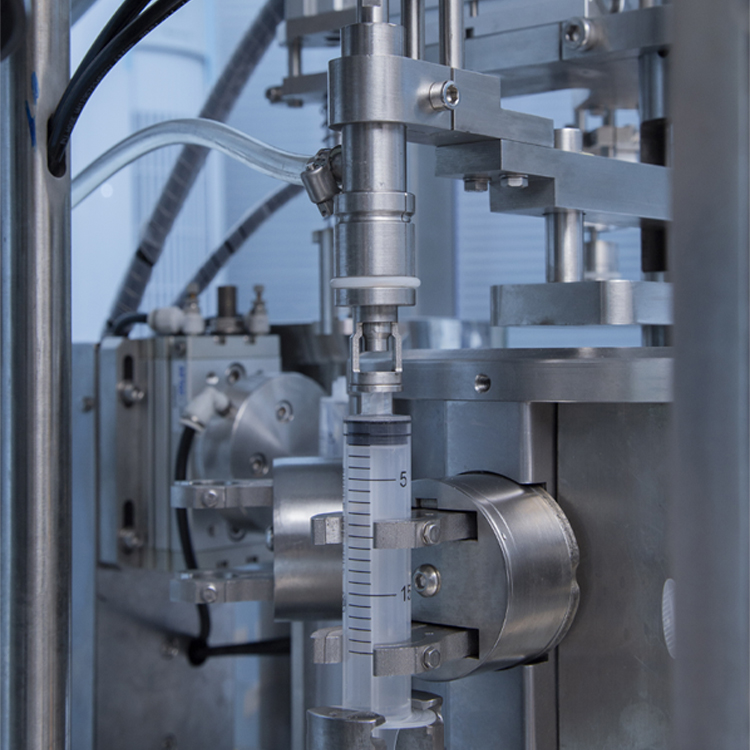

Filling Station
Automatic fill liquid intosyringe from top to bottom.
